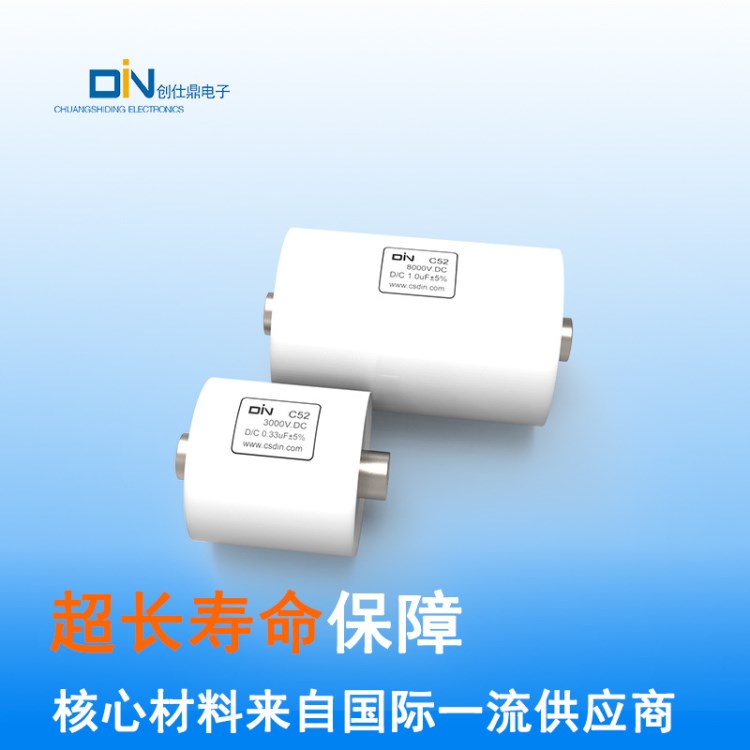

█特點 |
| █Features |
●邁拉膠帶封裝，環氧樹脂灌封 |
| ●Mylar tape package, Sealed with epoxy resin |
●高紋波吸收能力，高dv/dt承受能力 |
| ●High-frequency ripple absorption ability |
●等效串聯電阻小，自感小 |
| ●Low ESR, Low ESL |
●損耗小，內部溫升小 |
| ●Low loss and small inherent temperature rise |
█主要用途 |
| █Typical application |
●GTO中突波的吸收 |
| ●Damping of voltage spikes in GTO-Thrusters |
●高紋波電流直流濾波應用 |
| ●High ripple current D.C. filtering |
●高壓脈沖，高頻應用 |
| ●For high pulse and high frequency application |
■技術參數Technical Specifications
項目Items | 性能要求Characteristics | |
引用標準/Reference standards | GB/T 17702 IEC 61071 | |
容量范圍/Capacitance | 0.01μF ~10.0μF | |
額定電壓/Rated Voltage | 700V.DC～9000V.DC | |
容量偏差/Tolerance | ±5% ±10% | |
損耗角正切/Dissipation factor | tgδ≤10×10-4 at 25℃±5℃,1KHz | |
絕緣電阻/Insulation resistance | C·R≥5000S,at500V.DC,25℃±5℃,60s | |
工作溫度范圍/Operating temperature range | -40℃～85℃ | |
極間耐電壓/Test voltage between terminals | 1.5Un (10S,25℃±5℃) | |
極殼耐電壓/Test voltage between terminals and case | 3000V.AC(10S,50/60Hz,25℃±5℃) | |
最大安裝扭矩/ Max. Torque of Installation | 3.0Nm | |
最大電極扭矩/Max. Torque of terminals | M6:5Nm | M8:6.0Nm |
最高使用海拔/Max Altitude | 2000m | |
預期壽命/Expected lifetime | 100 000hrs @ Un,θhs=70℃ | |
失效率/Failure rate | 100FIT | |
█標準品一覽表 Standard size
靜電 容量 Cap(uF) | Outline size (mm) | Ls (nH) | dv/dt (V/us) | Î (A) | Irms @70℃/100KHZ (A) | Part number | |
ΦD (mm) | H (mm) | ||||||
Un：3000V.DC | |||||||
0.33 | 35 | 46 | 25 | 1100 | 242 | 30 | C52334****□3SF*70○ |
0.33 | 43 | “ | “ | 1000 | 330 | 35 | C52334****□3SF*70○ |
0.47 | 51 | “ | 22 | 850 | 399 | 45 | C52474****□3SF*70○ |
0.68 | 61 | “ | “ | 800 | 544 | 55 | C52684****□3SF*70○ |
1 | 74 | “ | 20 | 700 | 700 | 65 | C52105****□3SF*70○ |
1.2 | 80 | “ | “ | 650 | 780 | 75 | C52125****□3SF*70○ |
Un：6000V.DC | |||||||
0.22 | 43 | 60 | 25 | 1500 | 330 | 35 | C52224****□34I*70○ |
0.33 | 52 | “ | “ | 1200 | 396 | 45 | C52334****□34I*70○ |
0.47 | 62 | “ | “ | 1000 | 470 | 50 | C52474****□34I*70○ |
0.68 | 74 | “ | 22 | 900 | 612 | 60 | C52684****□34I*70○ |
1 | 90 | “ | “ | 800 | 900 | 75 | C52105****□34I*70○ |
Un：7000V.DC | |||||||
0.22 | 45 | 56 | 25 | 1100 | 242 | 30 | C52224****□36H*70○ |
0.68 | 36 | 80 | 28 | 1000 | 680 | 25 | C52684****□36K*70○ |
1 | 43 | “ | “ | 850 | 850 | 30 | C52105****□36K*70○ |
1.5 | 52 | “ | 25 | 800 | 1200 | 35 | C52155****□36K*70○ |
1.8 | 57 | “ | “ | 700 | 1260 | 40 | C52185****□36K*70○ |
2 | 60 | “ | 23 | 650 | 1300 | 45 | C52205****□36K*70○ |
3 | 73 | “ | 22 | 500 | 1500 | 50 | C52305****□36K*70○ |
Un：8000V.DC | |||||||
0.33 | 35 | 90 | 30 | 1100 | 363 | 25 | C52334****□38L*70○ |
0.47 | 41 | “ | 28 | 1000 | 470 | 30 | C52474****□38L*70○ |
0.68 | 49 | “ | “ | 850 | 578 | 35 | C52684****□38L*70○ |
1 | 60 | “ | 25 | 800 | 800 | 40 | C52105****□38L*70○ |
1.5 | 72 | “ | “ | 700 | 1050 | 45 | C52155****□38L*70○ |
備注：產品規格展示有限，如需了解更多，請登錄我們的主頁www.csdin.com進行詳細了解。
★核心生產設備均來自羅德、晟威等一流設備廠商；公司自動化程度達到80%，處于行業領先水平。
★獨立的產品信賴性實驗室，并依據 IEC60384 ，IEC61071等相關標準對公司系列產品定期做相關壽命測試；并長期與國內多所大學保持產學互動研發。
★超大恒濕倉庫，庫存式銷售常規產品現貨銷售。
國內最早一批通過VDE、UL、ENEC、CQC認證的電容器生產性企業，質量管理體系、環境管理體系體現公司的社會責任感，高新企業證書是我們發展新的起點；
